The Ultimate Performance Stack for Precision UAV Operations

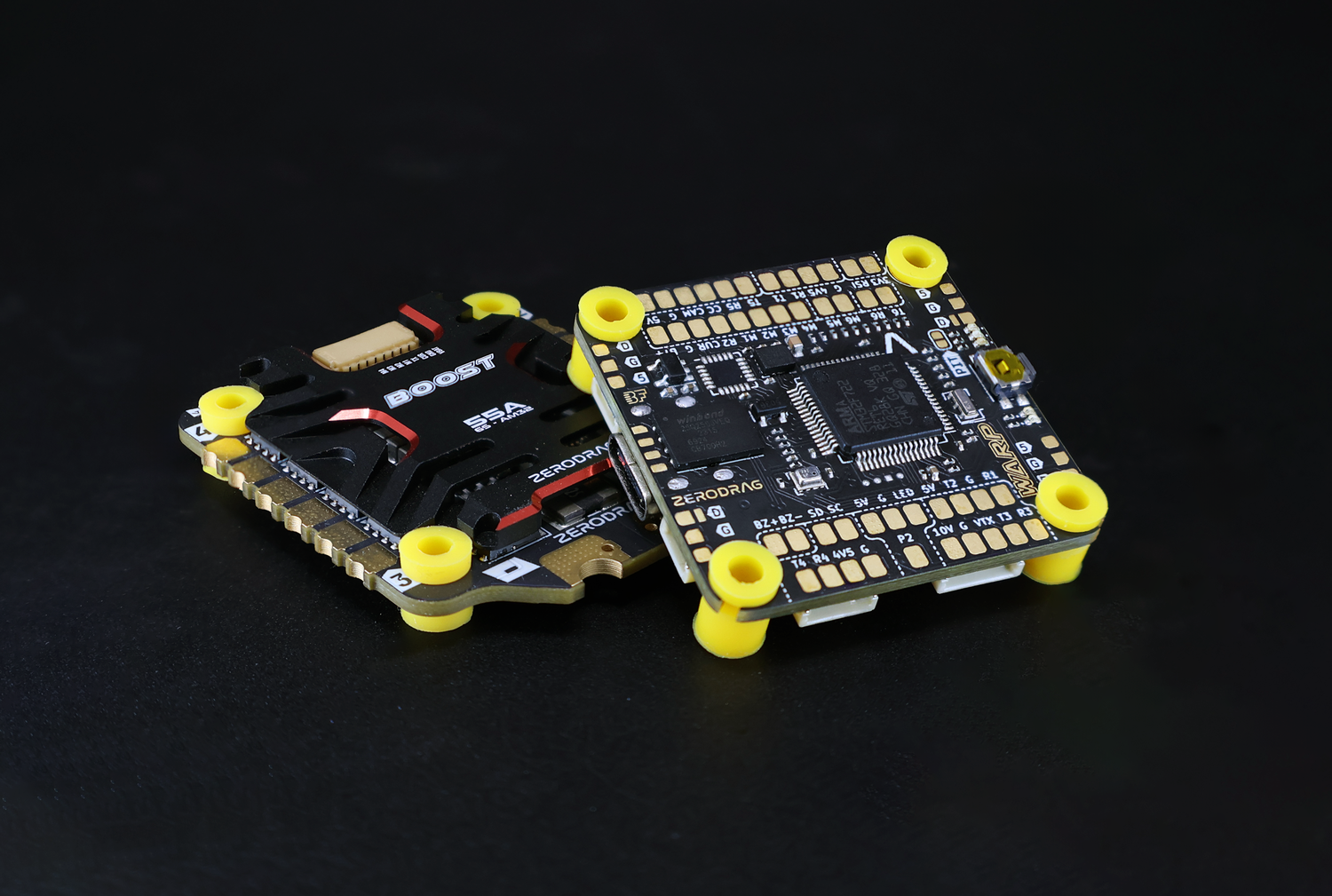

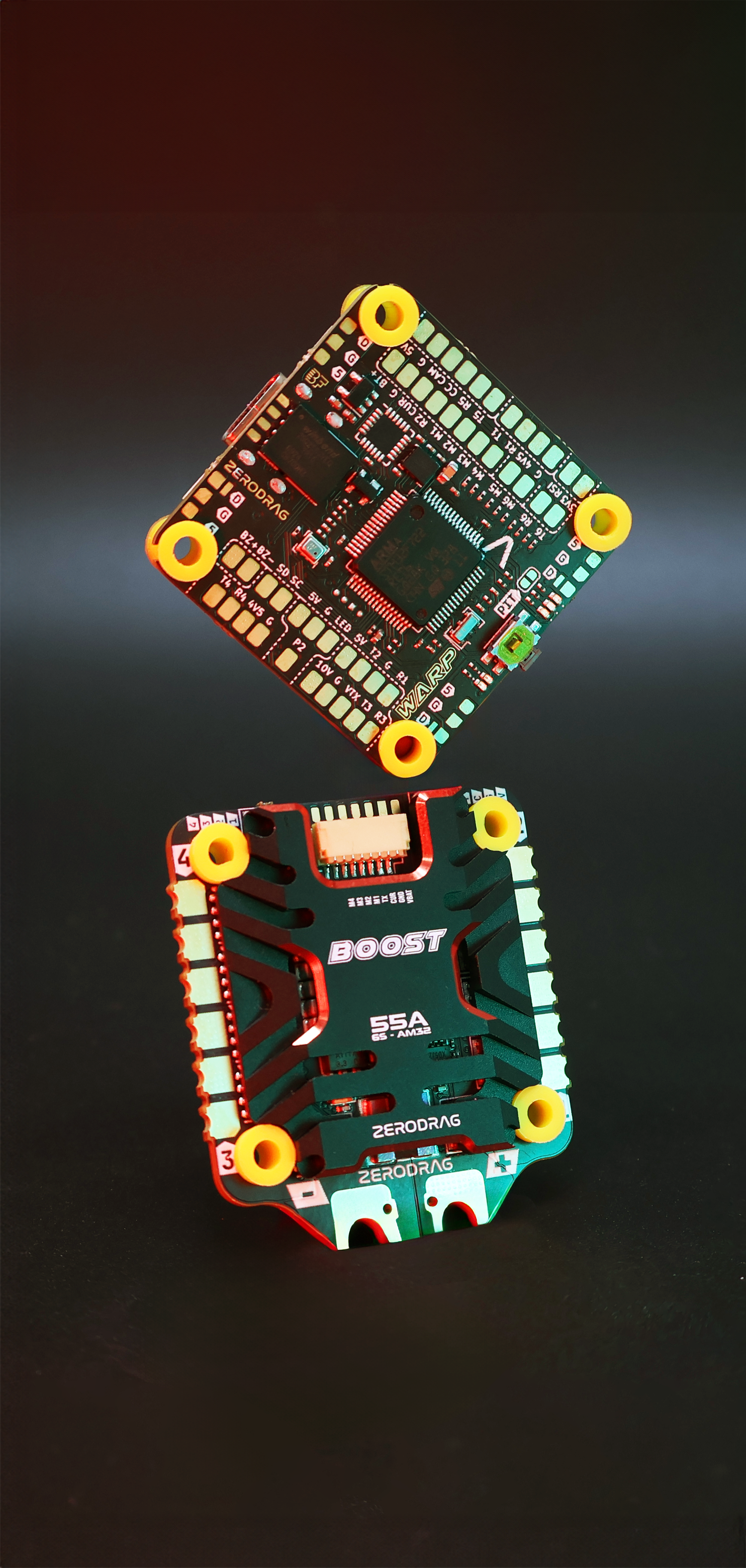

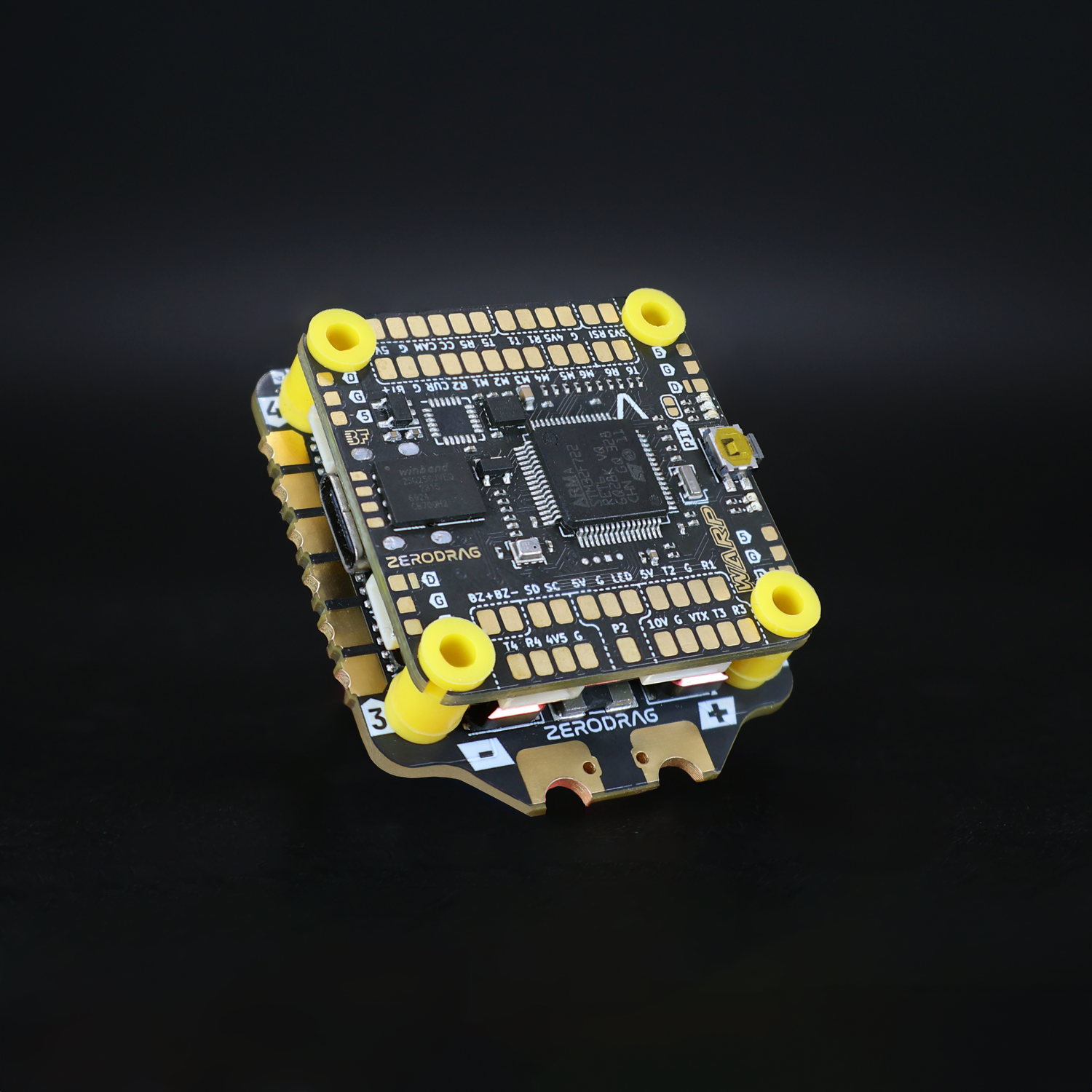

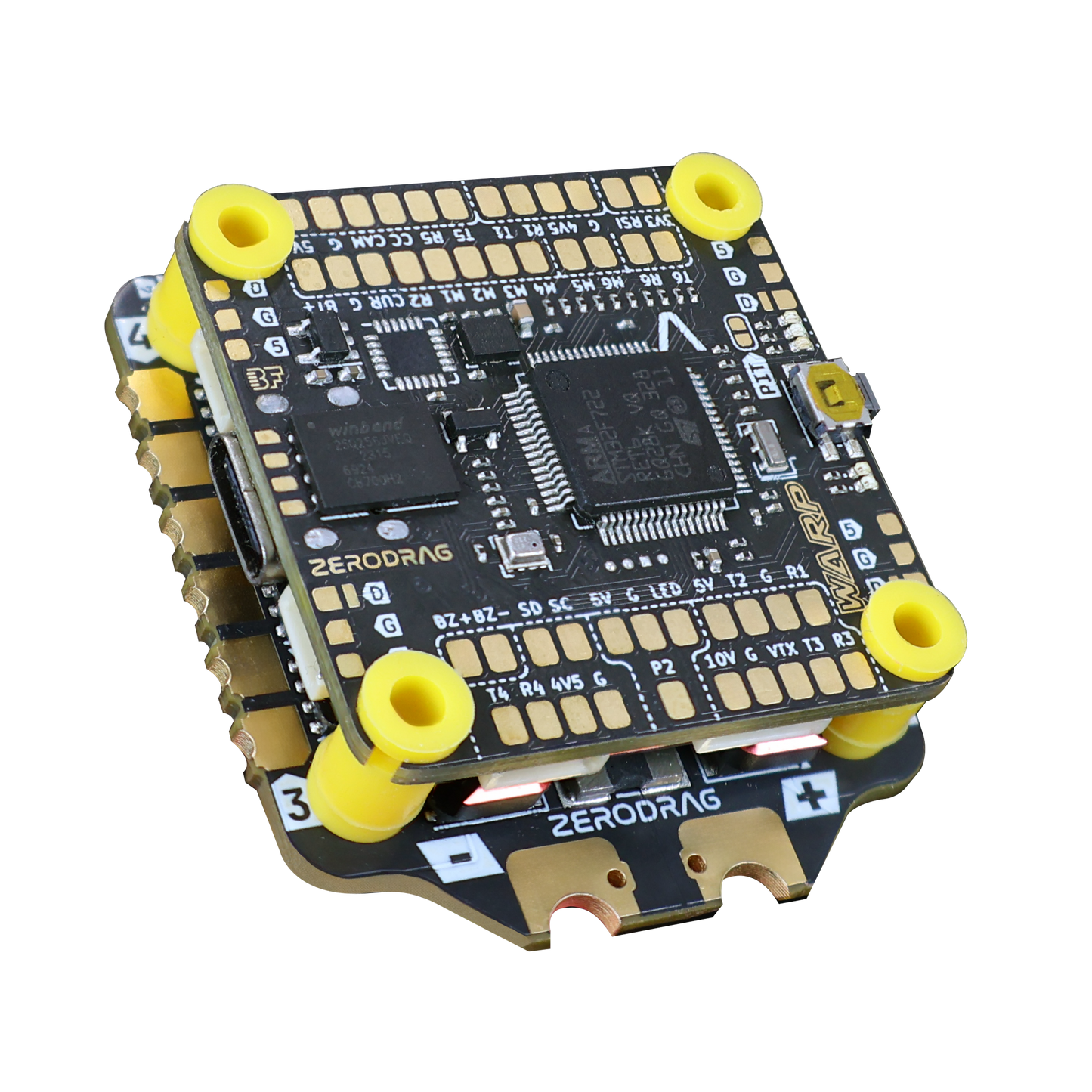

The ZERODRAG WARP F7 Flight Controller + BOOST AM32 55A 4-in-1 ESC Stack integrates cutting-edge flight control and ESC technology to deliver superior performance and reliability for high-precision UAV builds. Designed for seamless integration, this stack is tailored to meet the demands of freestyle drones, FPV racers, and professional UAVs.
At the heart of the stack, the WARP F7 Flight Controller features the high-performance ICM42688P gyro, which is paired with a dedicated LDO (Low-Dropout Regulator) for superior power noise isolation. This ensures stable and precise performance even in electrically noisy environments. Additional features like an integrated BMP280 barometer and 32MB BlackBox for flight data logging make the WARP F7 a top-tier choice for UAV enthusiasts.
Complementing the flight controller, the BOOST AM32 55A 4-in-1 ESC delivers efficient power management with AM32 firmware, supporting up to 6S LiPo batteries. Its advanced design guarantees smooth and reliable power delivery, making it ideal for high-performance UAV applications.
Together, the WARP F7 and BOOST AM32 form a powerful, feature-packed stack that will elevate your UAV experience to new heights.
-

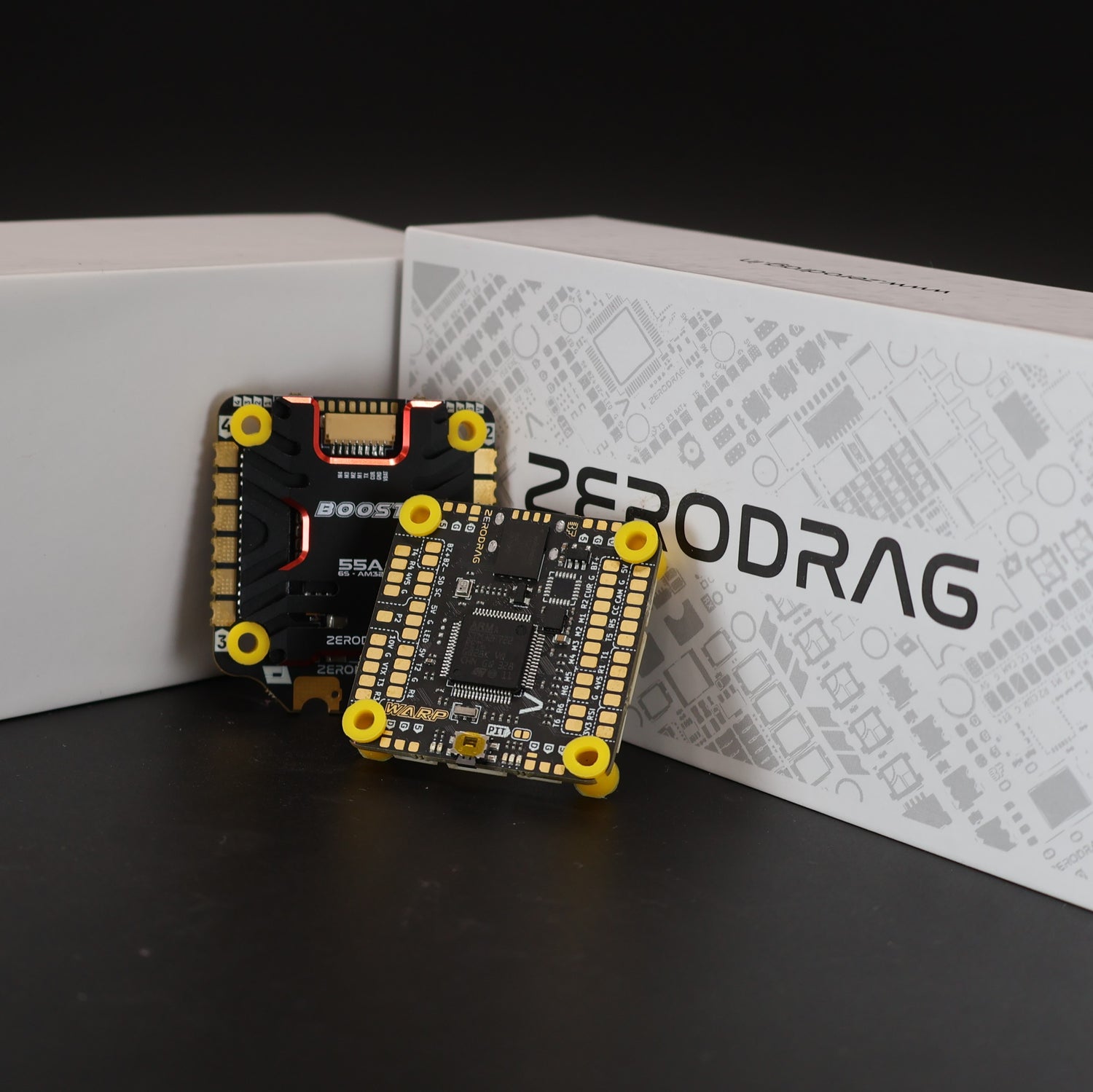

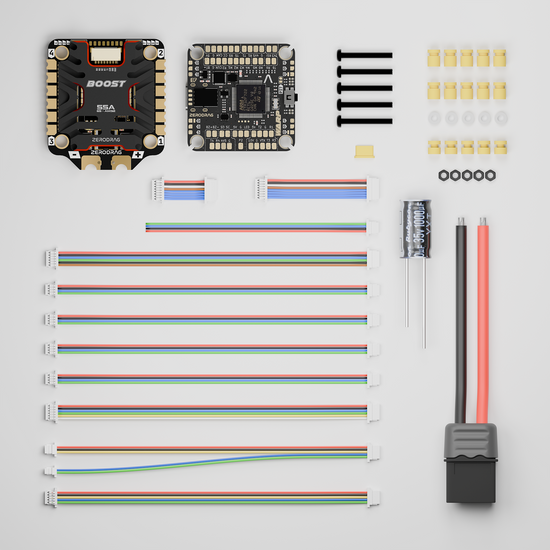

In The Box
• 1 x Warp F7 Flight Controller
• 1 x Boost Am32 55A 4-in-1 ESC
• 4 x LED Wire
• 1 x Camera Wire
• 1 x AVTX Wire
• 1 x DVTX Wire
• 1 x GPS Wire
• 1 x RC Wire
• 1 x ESC Long Cable
• 1 x ESC Short Cable
• 10 x Gummies (Tall)
• 5 x Gummies (Short)
• 5 x Spacers
• 5 x 30mm Screws
• 5 x M3 Nuts
• 1 x XT60H Pigtail
• 1 x 35V 1000uF Capacitor
-
Specifications

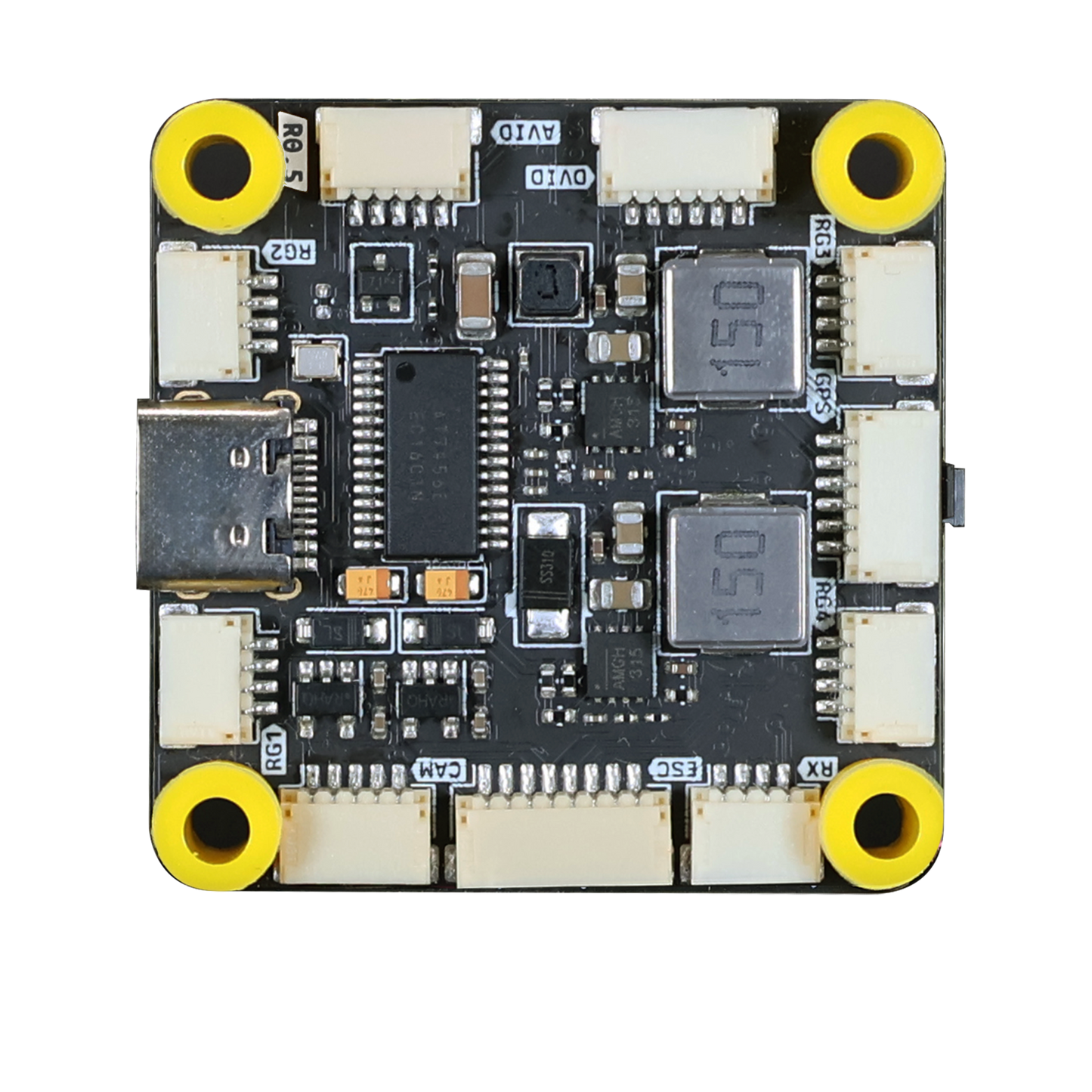

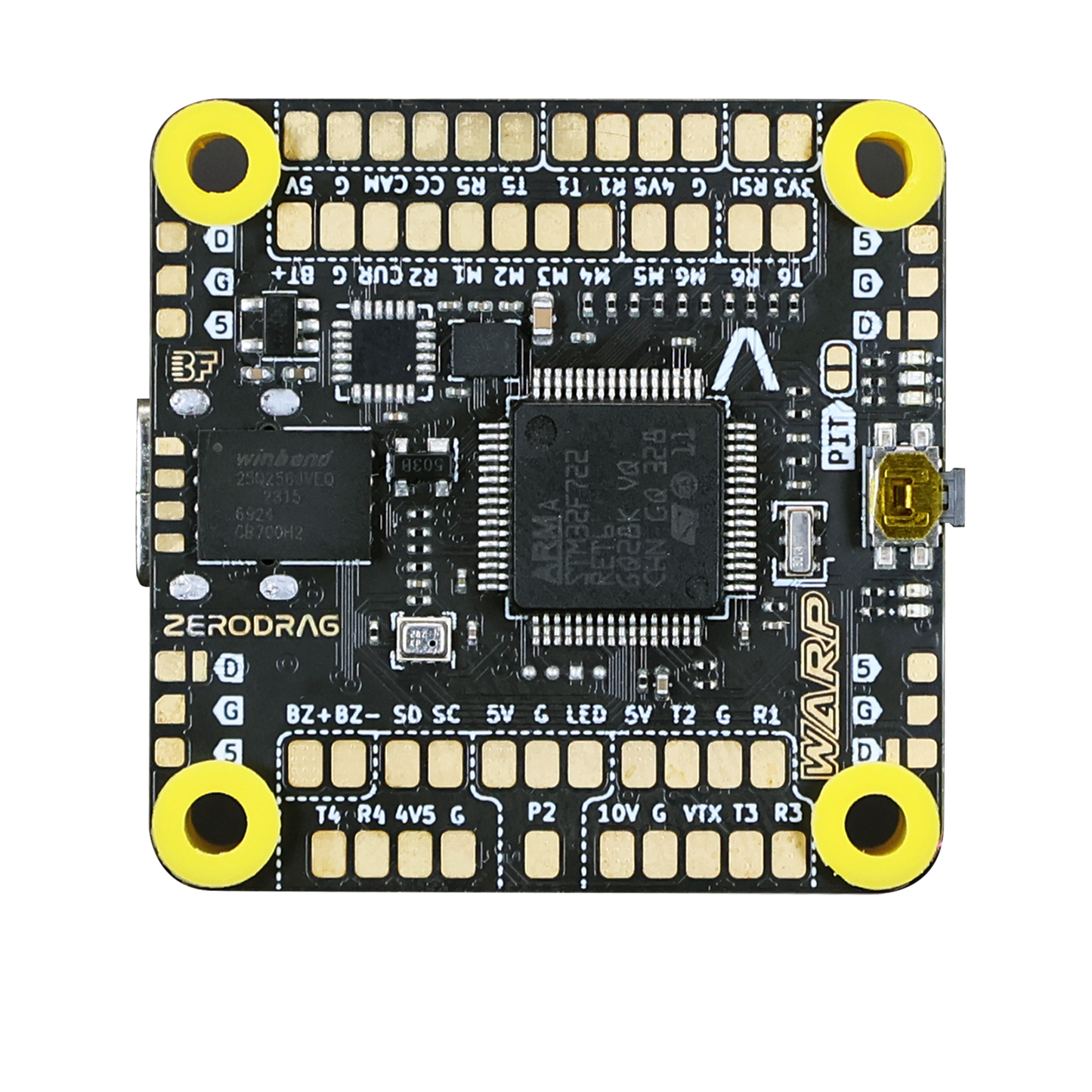

Flight Controller: ZERODRAG WARP F7
• MCU: STM32F722
• Gyro: ICM42688P with a dedicated LDO for noise-free performance
• Barometer: BMP280
• Power Input: 3-6S LiPo
• Mounting: 30.5 x 30.5mm (4mm holes)
• Dimensions: 37 x 38.5 x 7.1 mm
• Weight: 9.35g
• OSD Chip: AT7456E
• BECs: 5V @ 3A, 10V @ 2.5A, 3.3V @ 500mA
• UARTs: 6 UARTs with up to 8 motor outputs
• BlackBox Flash: 32MB
• LED Pads: 5x configurable via Betaflight firmware
• Connectivity: I2C pads, camera control pad, buzzer support
• Supported Firmware: Betaflight, iNav
.

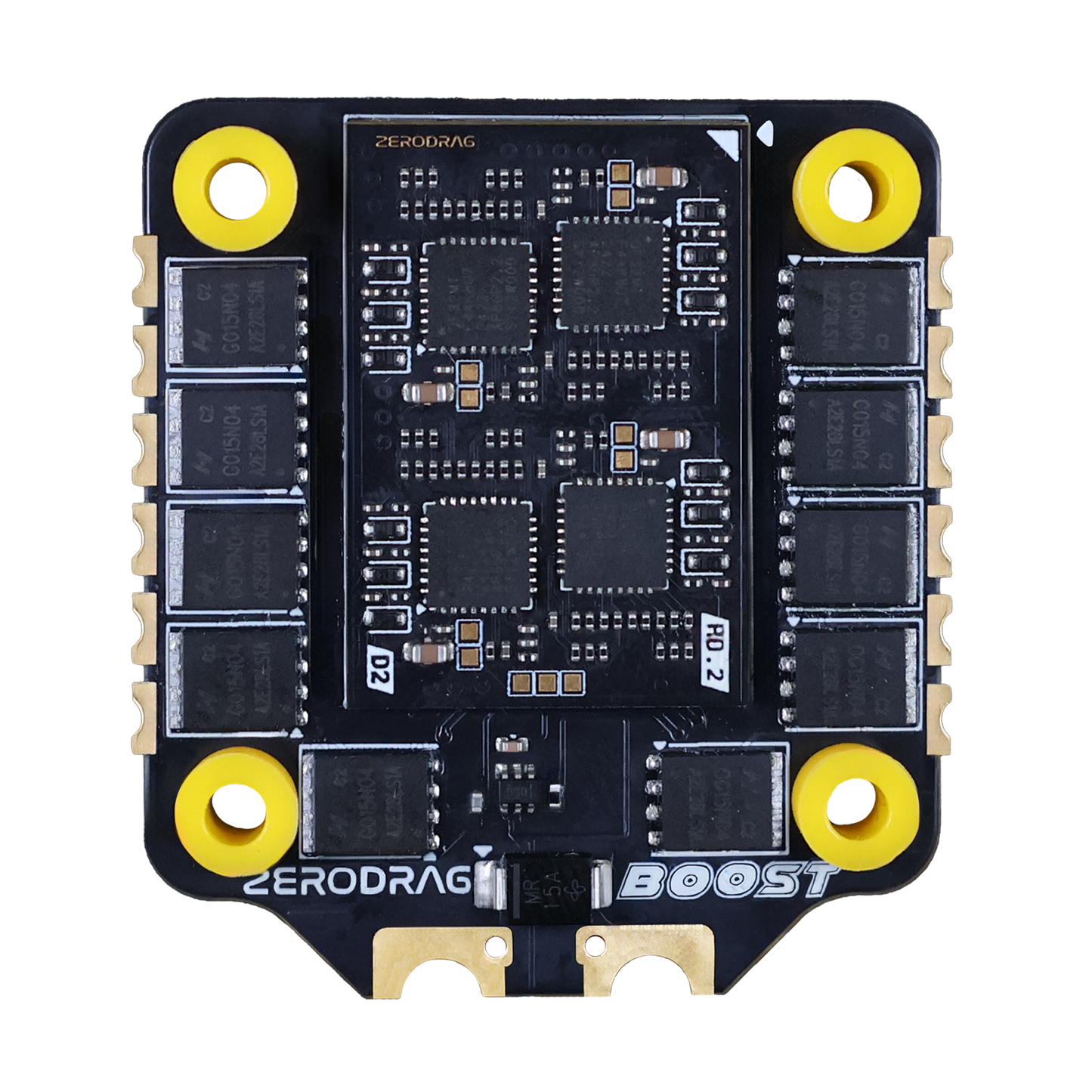

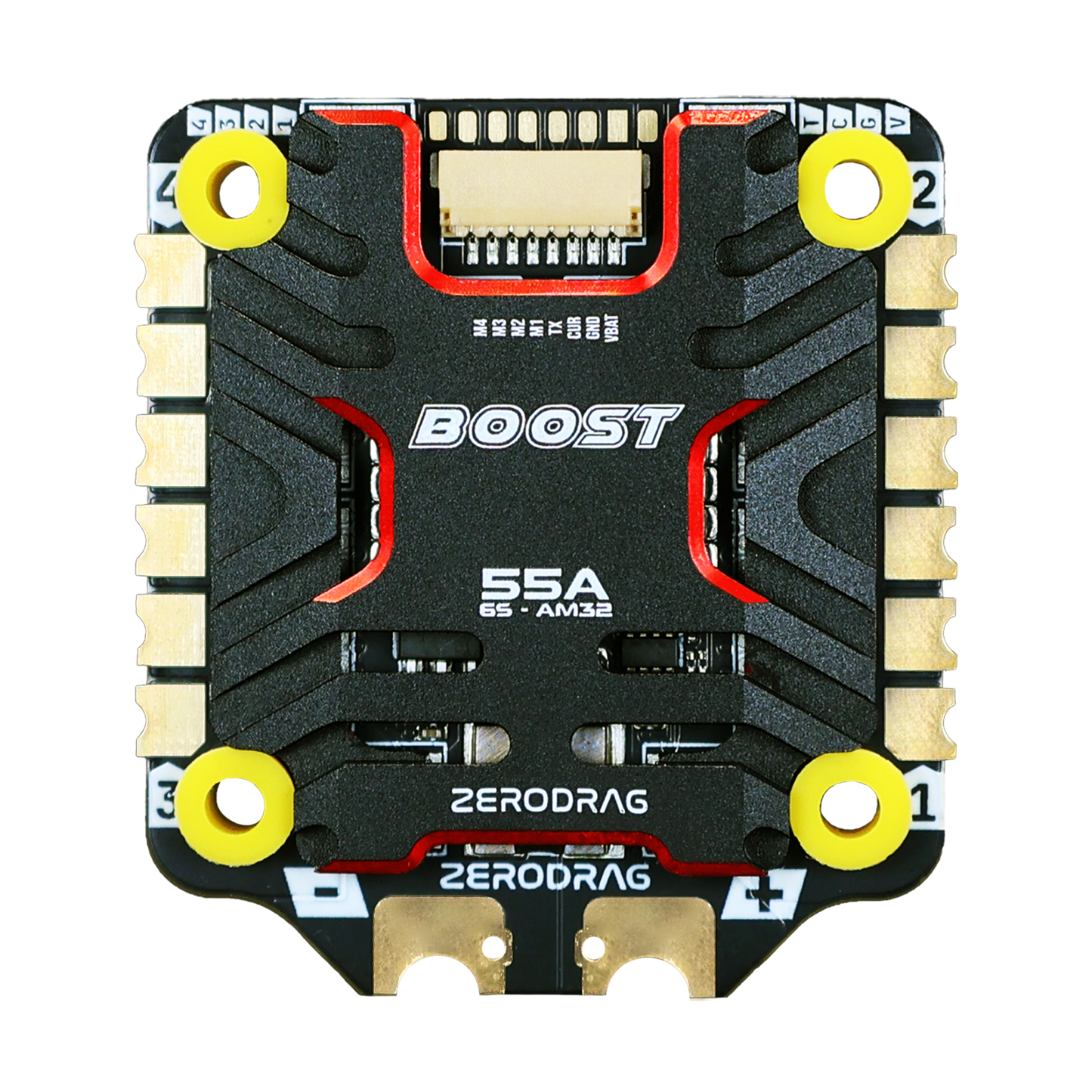

4-in-1 ESC: ZERODRAG BOOST AM32 55A
• Firmware: AM32
• Current Rating: 55A continuous, 65A burst
• Voltage Input: 3-6S LiPo
• MOSFETs: High-efficiency for minimal heat generation
• Telemetry: Current and RPM feedback
• Dimensions: 44.2 x 39.4 x 5.8 mm
• Weight: 12.5g
• Connector: XT60 (power input)
• Mounting: 30.5 x 30.5mm (M3 holes)
Features
Seamless Integration
• Pre-configured stack with plug-and-play connectivity for reduced setup time.
• Soft mounting for vibration isolation, improving flight stability.
Exceptional Performance
• High-precision ICM42688P gyro with dedicated LDO for power noise isolation, ensuring smooth operation in noisy environments.
• Advanced AM32 firmware for precise ESC control with minimal latency.
• Supports up to 6S batteries for high-thrust applications.
Robust Design
• Compact and lightweight stack to minimize UAV weight.
• Durable PCB design with optimized heat dissipation.
• Built-in surge protection and telemetry support on the ESC.
Enhanced User Experience
• 32MB BlackBox logging for post-flight analysis.
• Type-C USB port for convenient firmware updates.
• Betaflight and iNav compatibility for effortless configuration.
This ZERODRAG WARP F7 + BOOST AM32 Stack is engineered for UAV pilots who demand performance, reliability, and ease of use. The inclusion of a dedicated LDO for the ICM42688P gyro ensures consistent and reliable performance in all flight conditions, making this stack the ultimate choice for next-level UAV operations.
-
-
